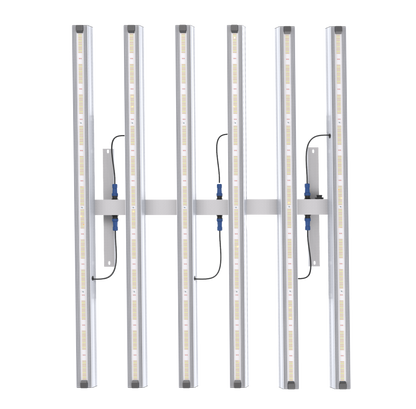

Overview
What Nanolux So Special?
120V-277V wide voltage design, available with different power plugs for wider use

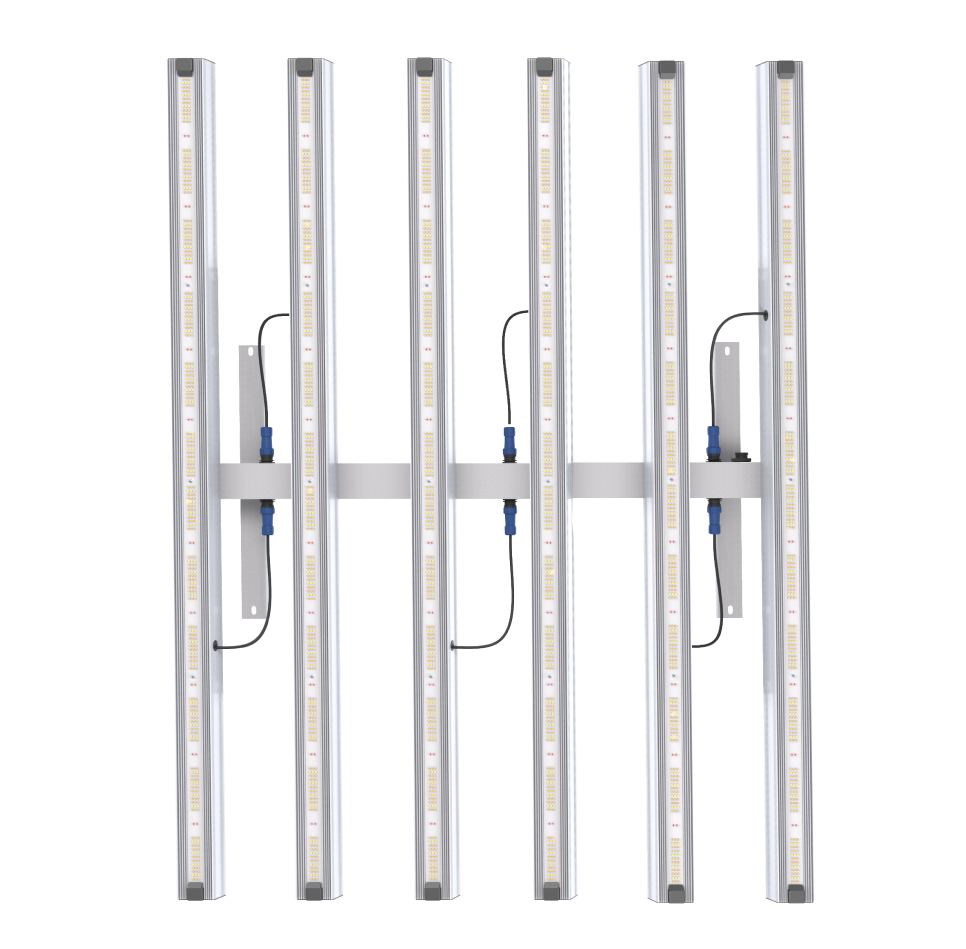

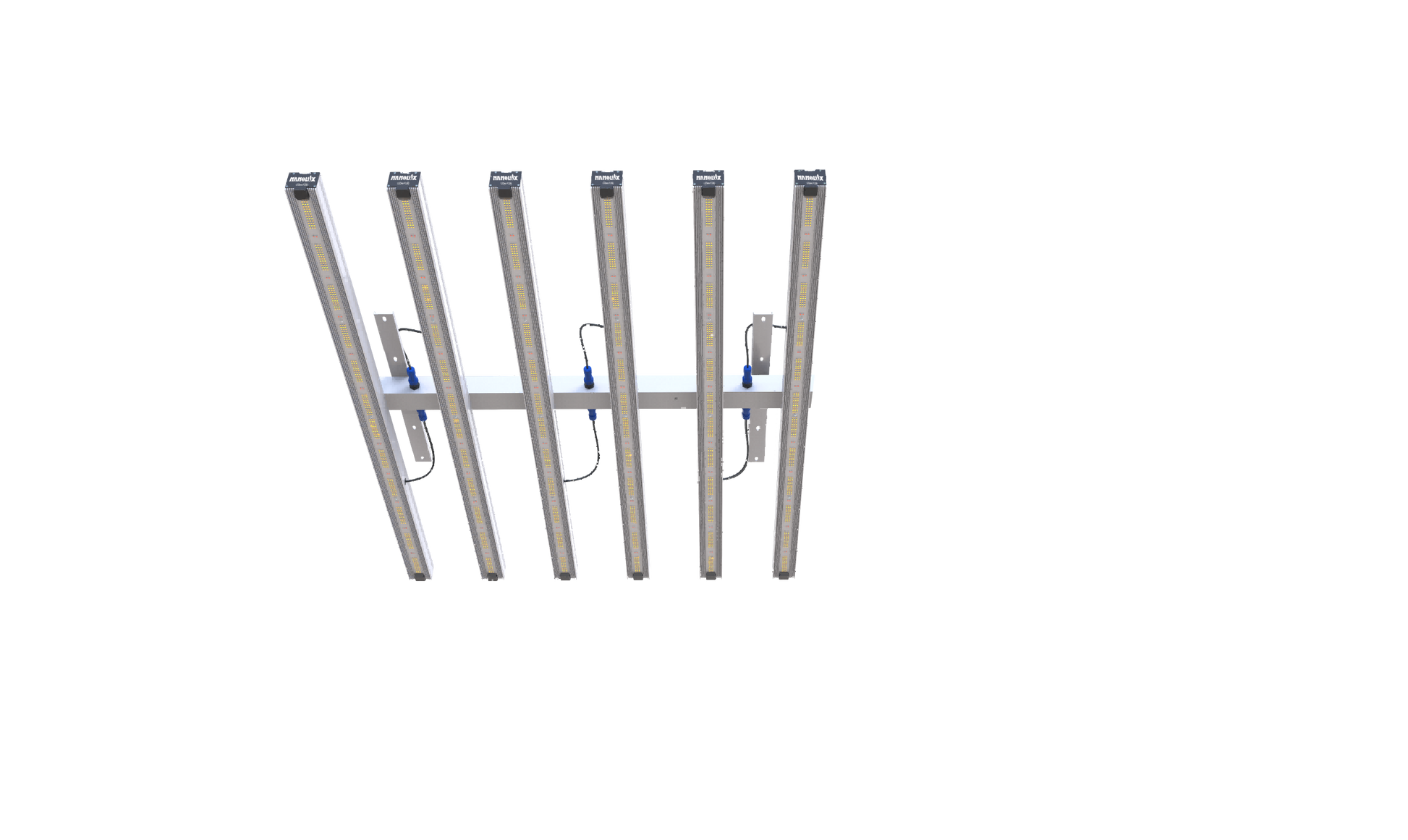

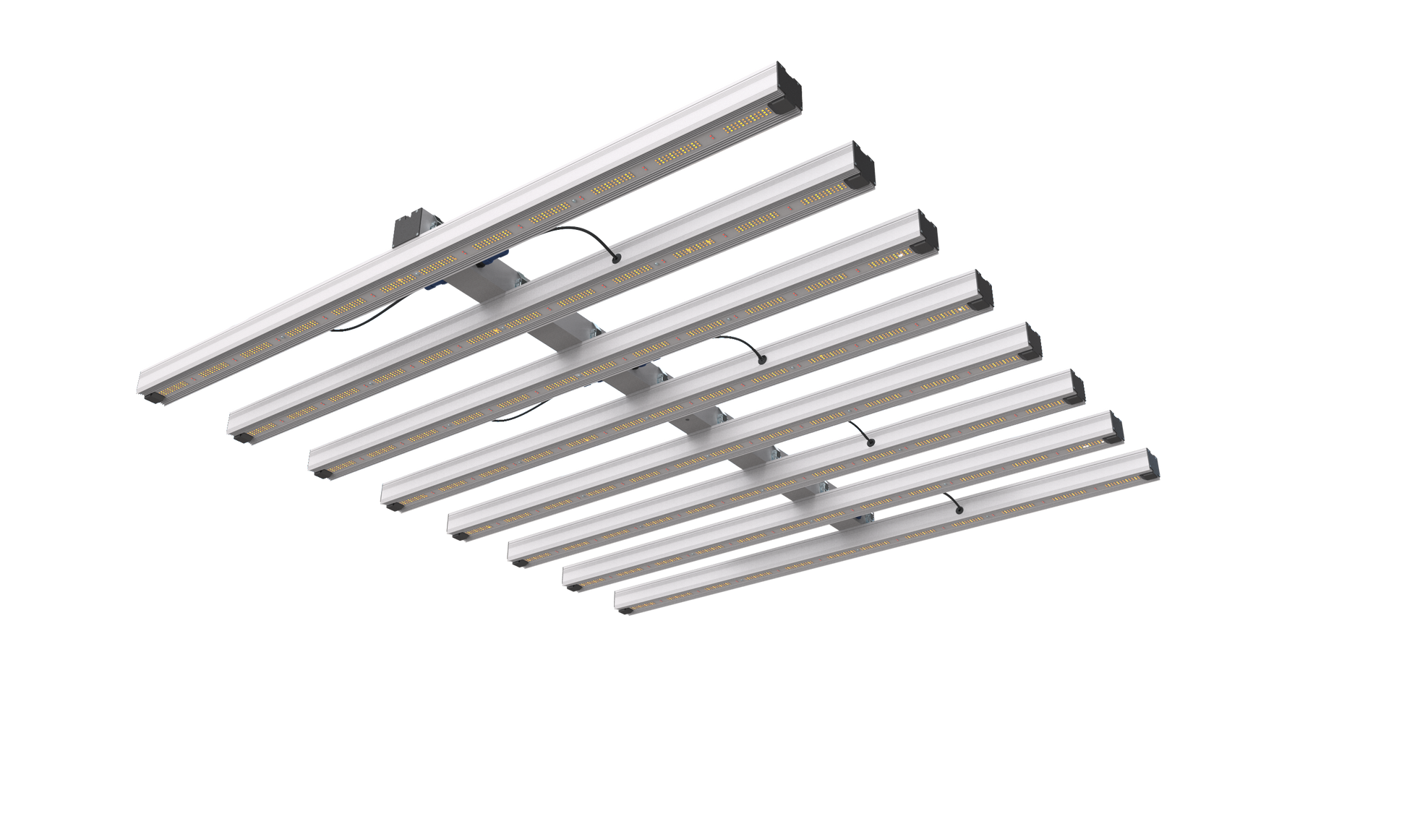

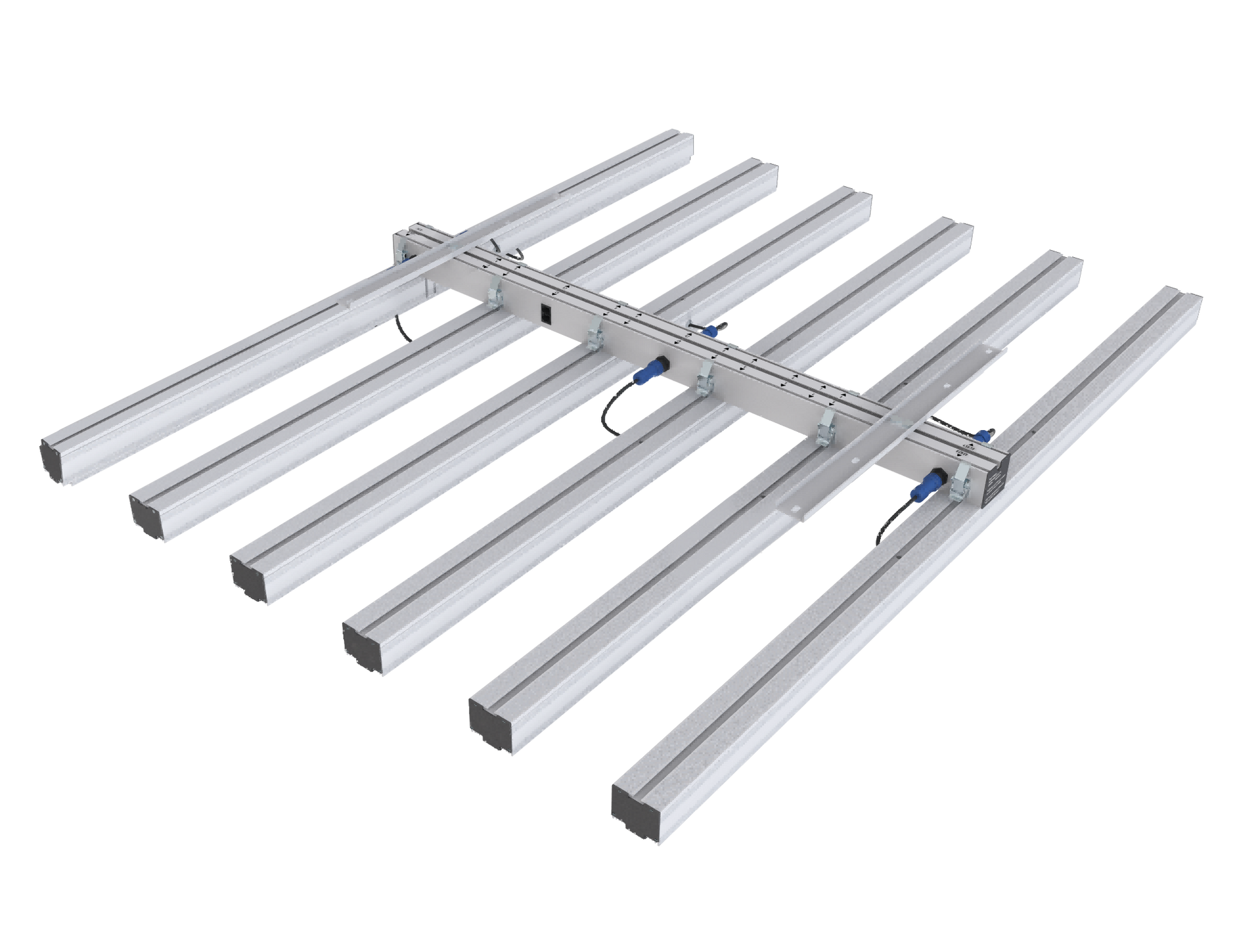

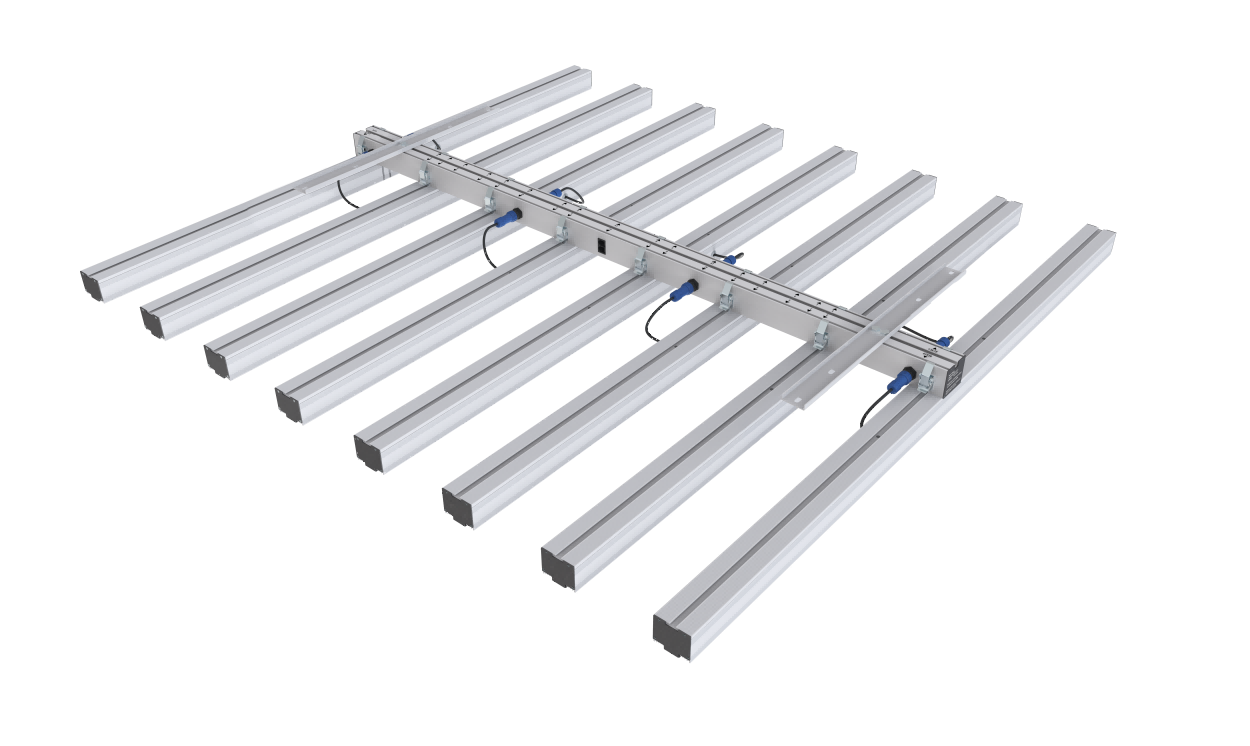

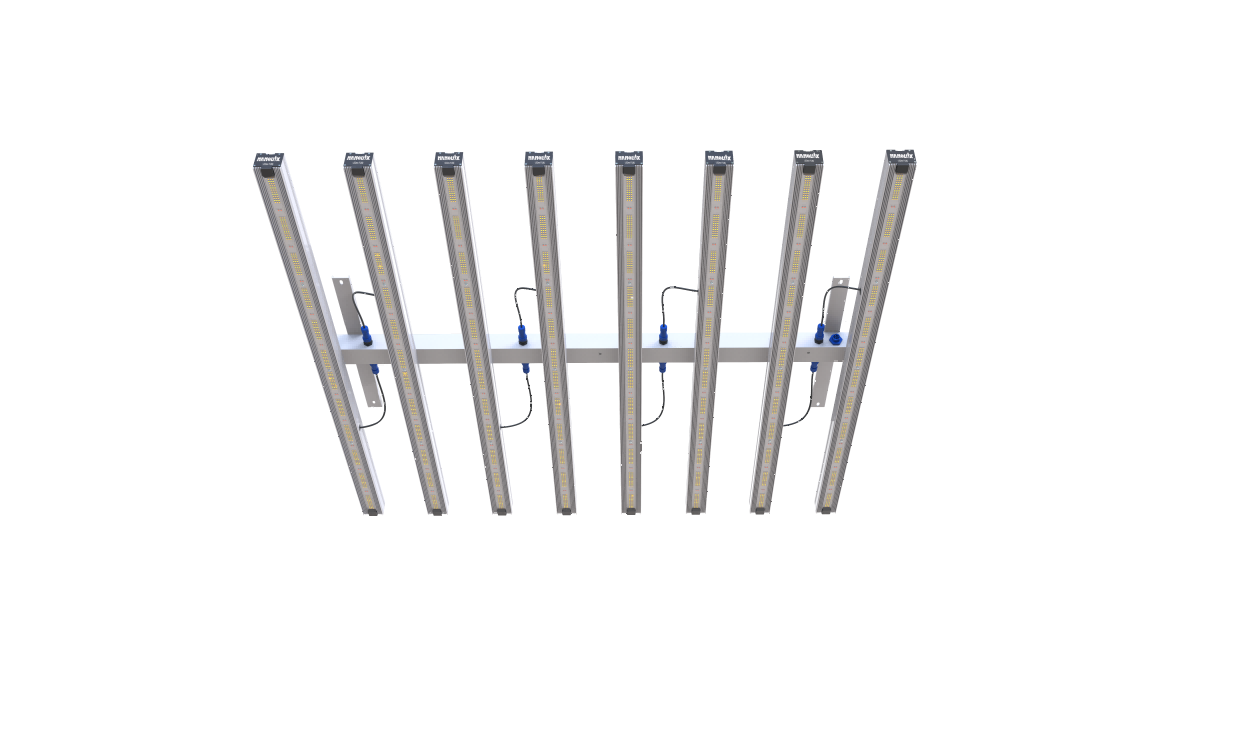

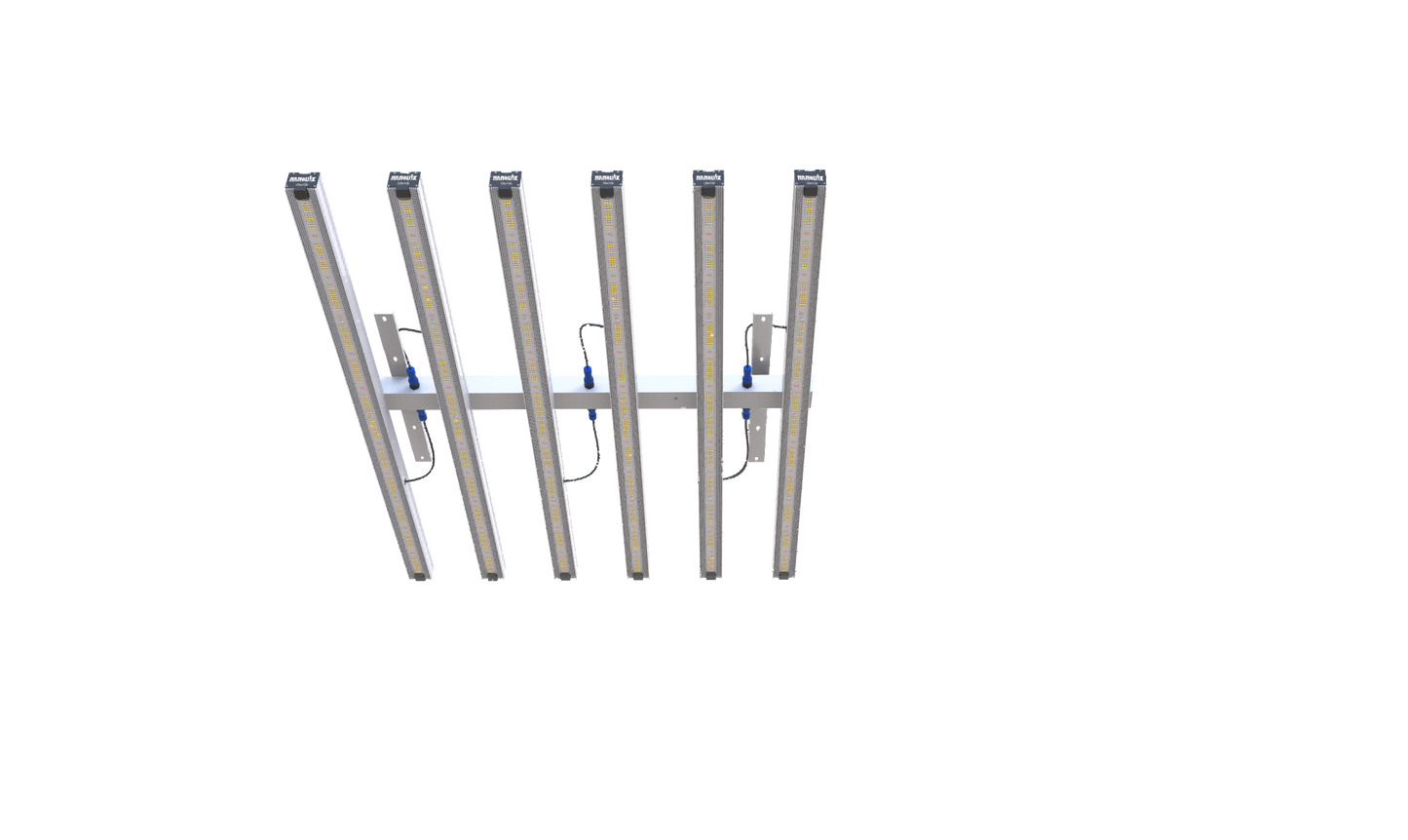

The classic foldable design can facilitate transportation and save the shipping and storage costs.
The modular patent design of the LED fixture structure can facilitate installation
Random start, soft start and soft dimming are applicable for the LED fixture along with over-temperature, over-voltage, open/short circuit protection, making it safer for users.
Smart digital control is input with LED bar protection function. When one or several bars fail, the life of other bars and the power supply will not be affected.
lP65 rating can ensure waterproof, moisture-proof and dust-proof.
0-10V dimming function is applied to be compatible with our NCcs control system, making it more flexible in use.

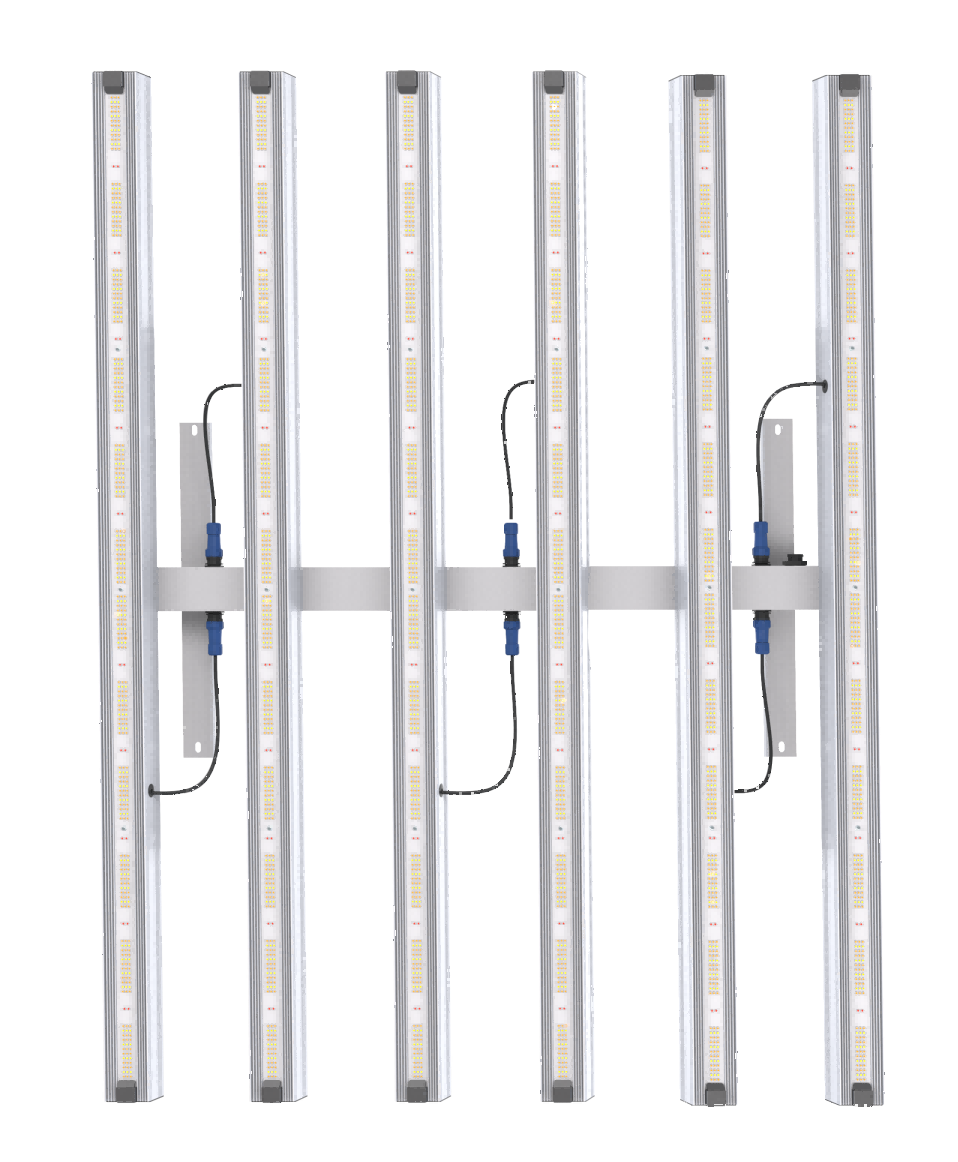

Specifications
- Product Model

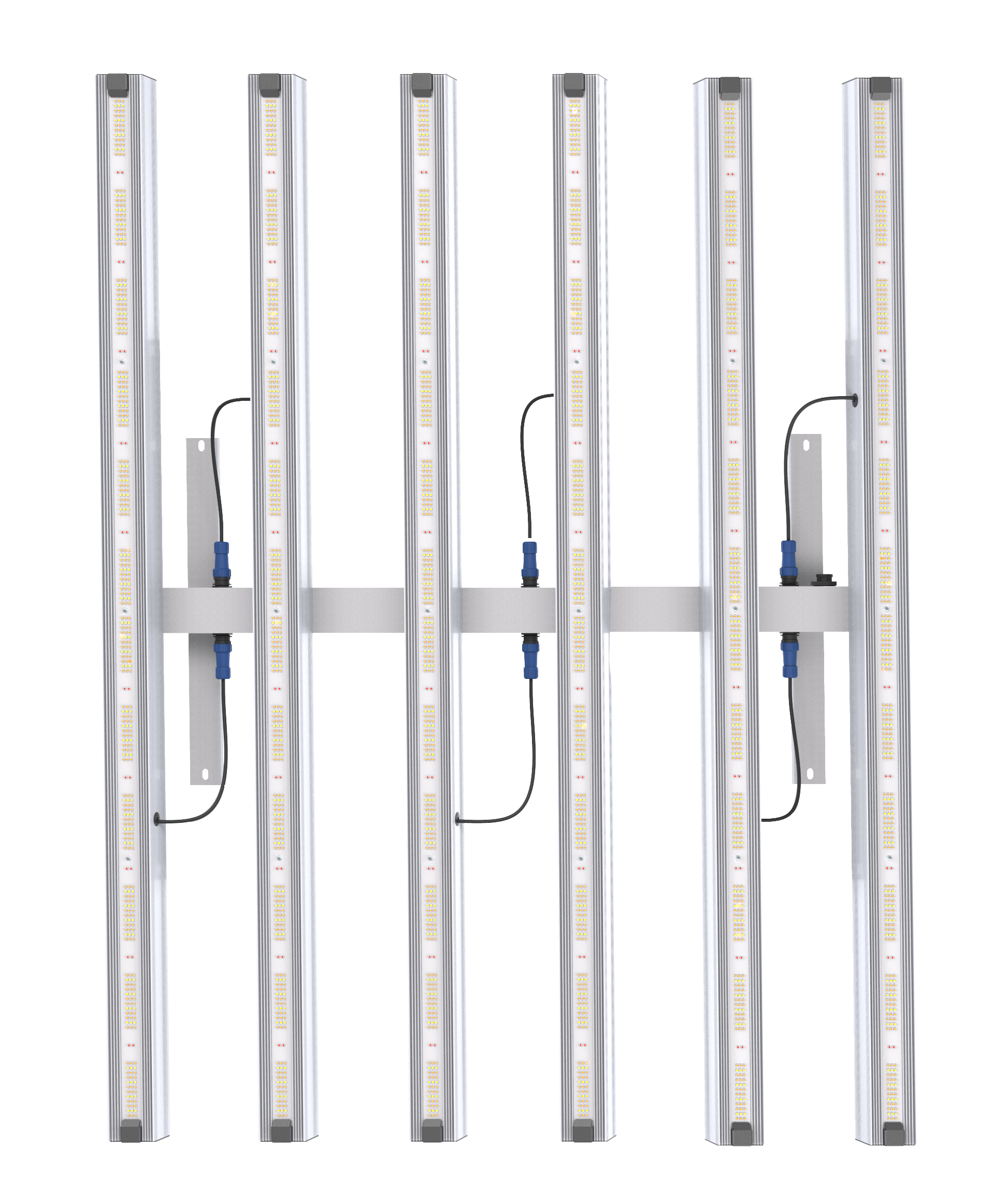

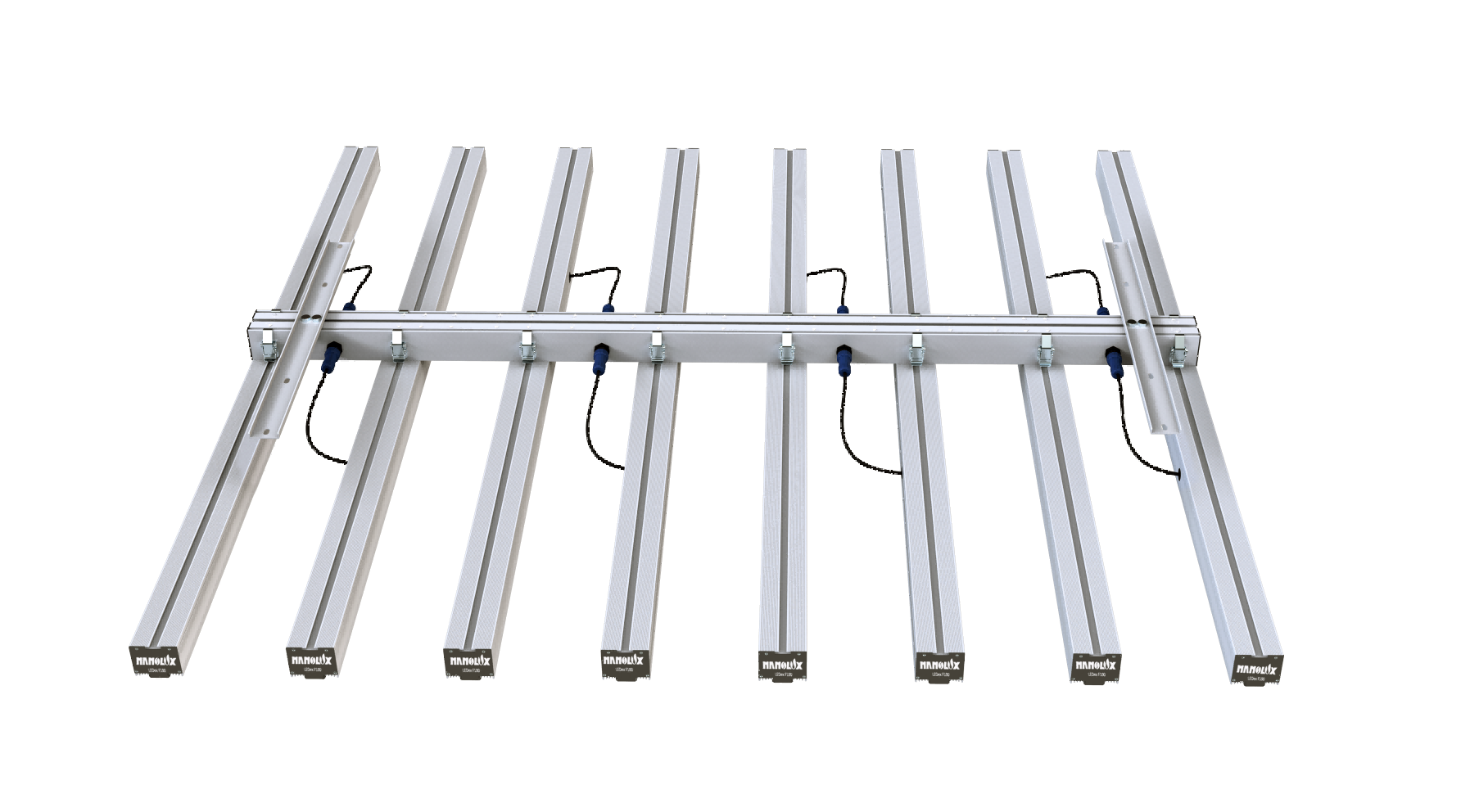

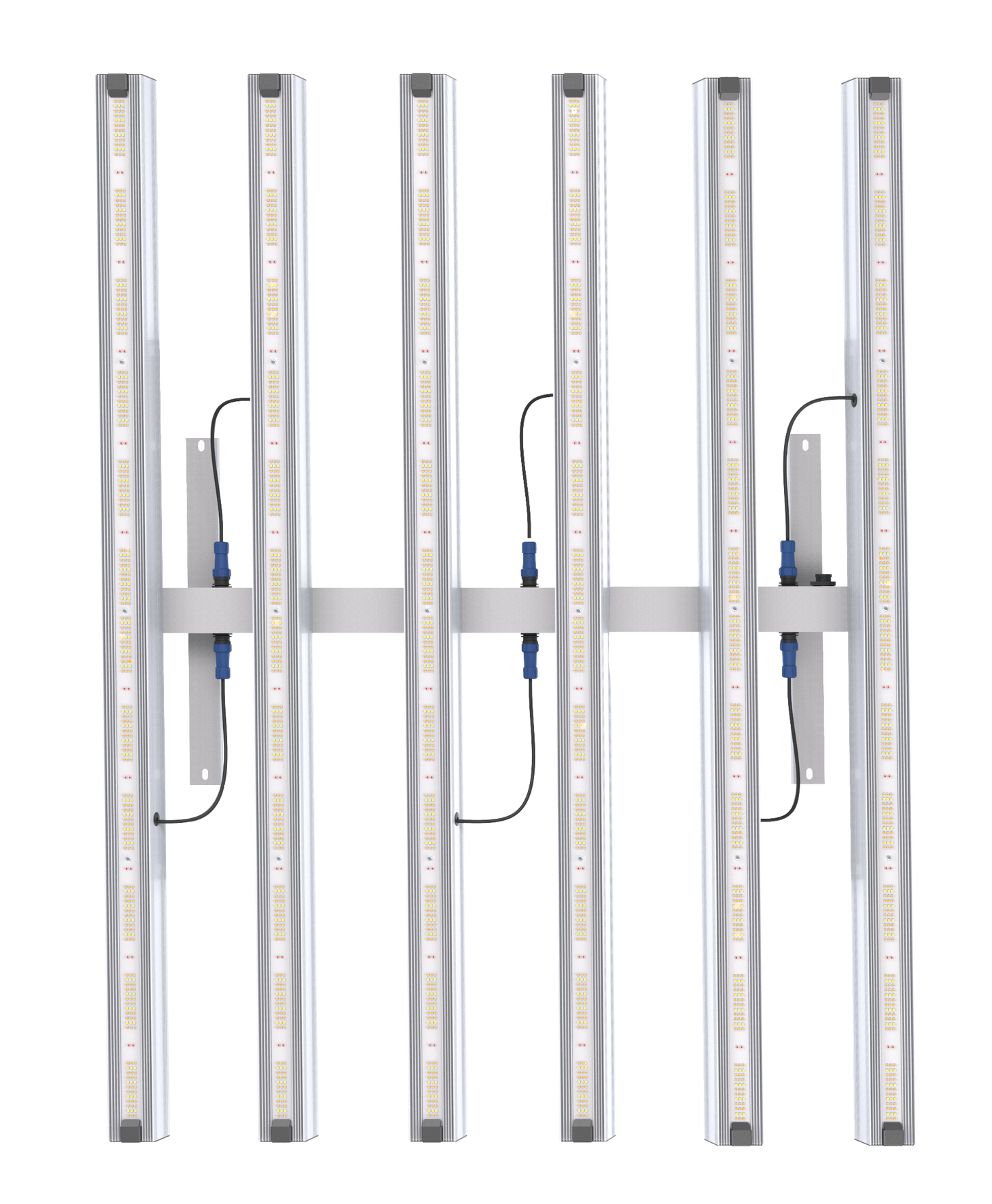

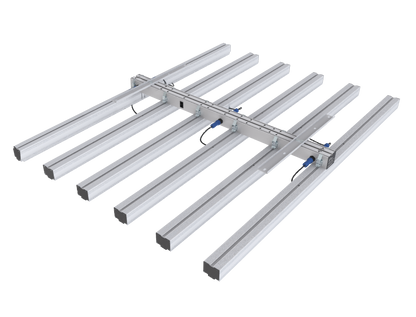

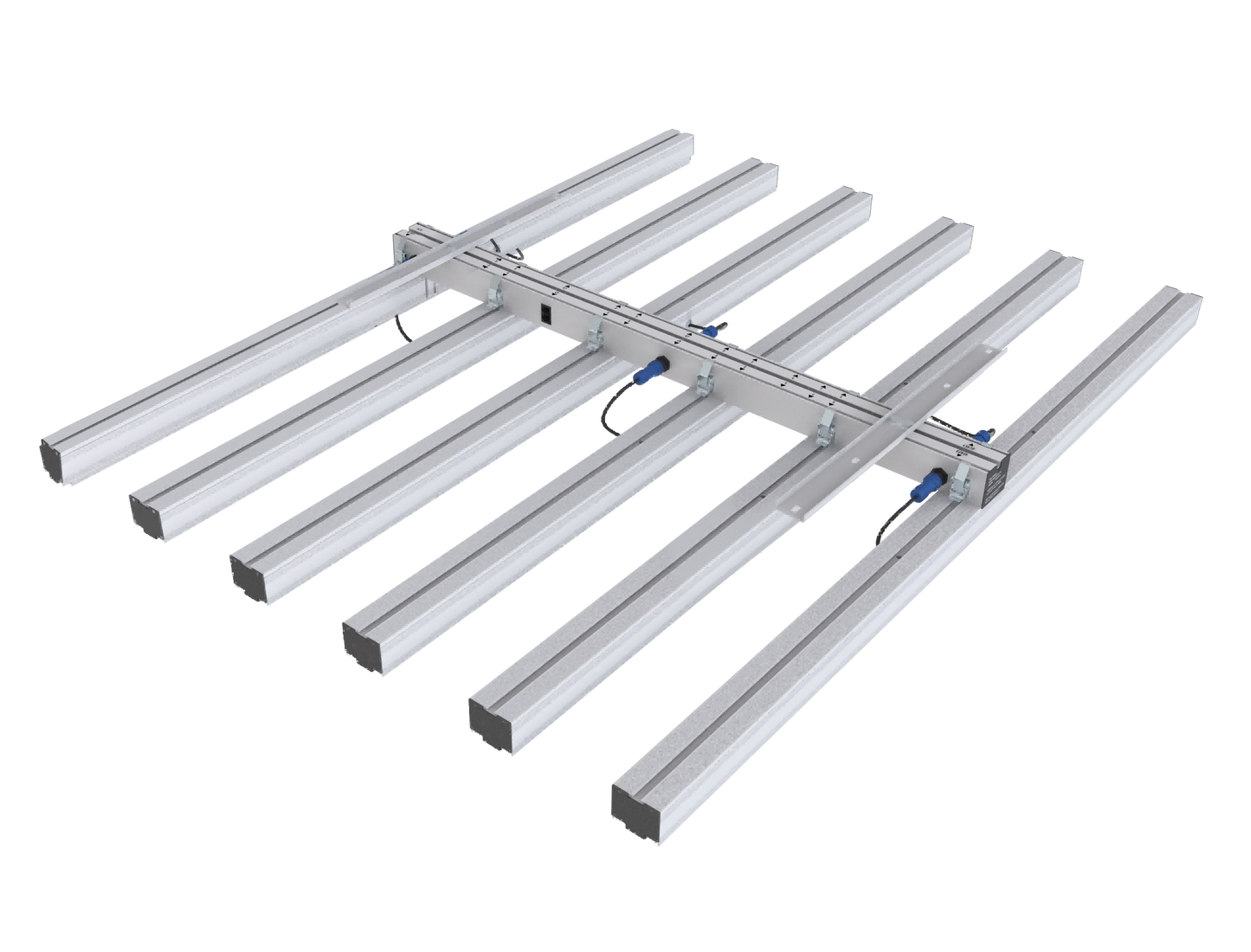

- LEDex F660 / LEDex F880
- Product code
- 80.01.0187 / 80.01.0188 / 80.03.0329
- Input power:
- 660W / 880W

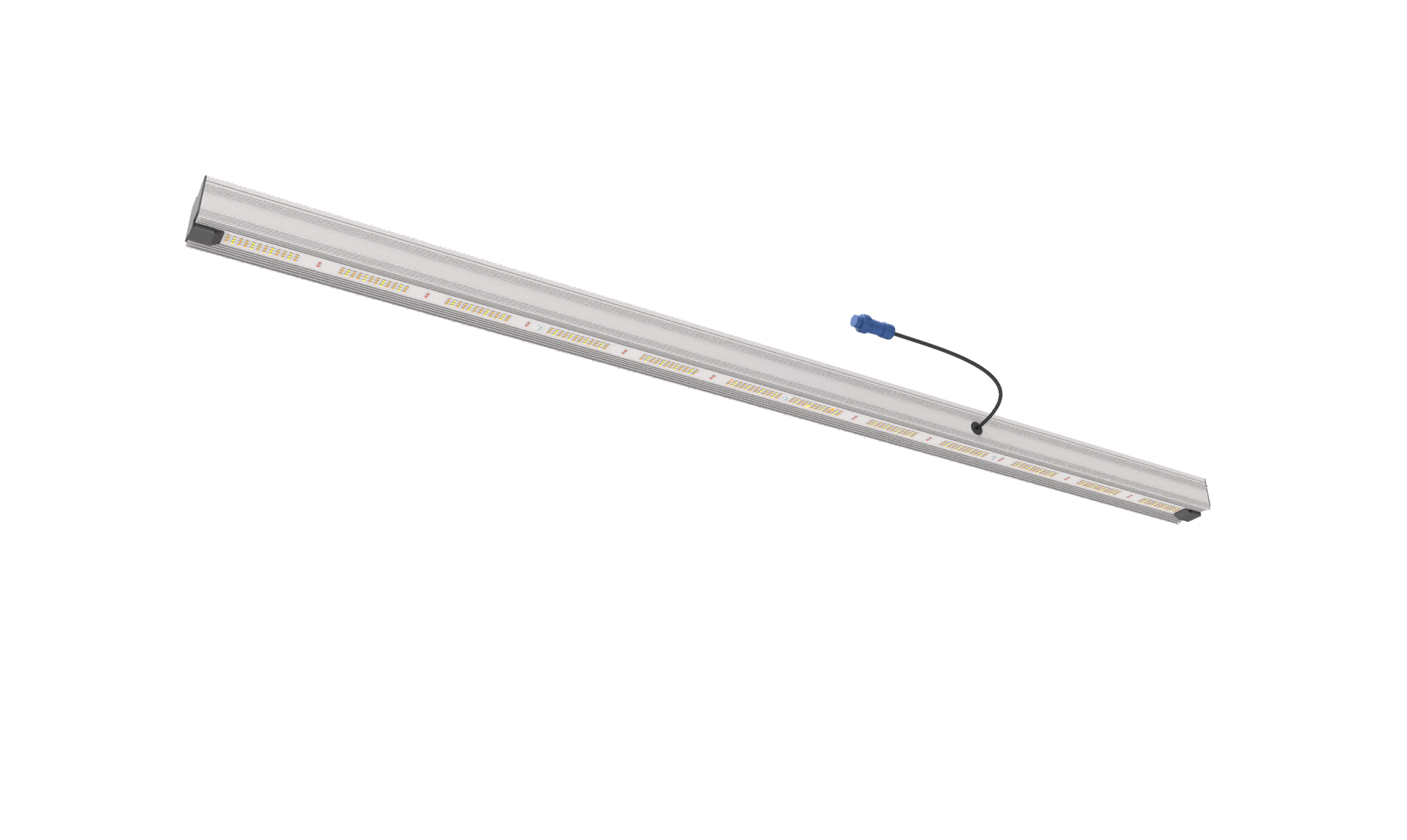

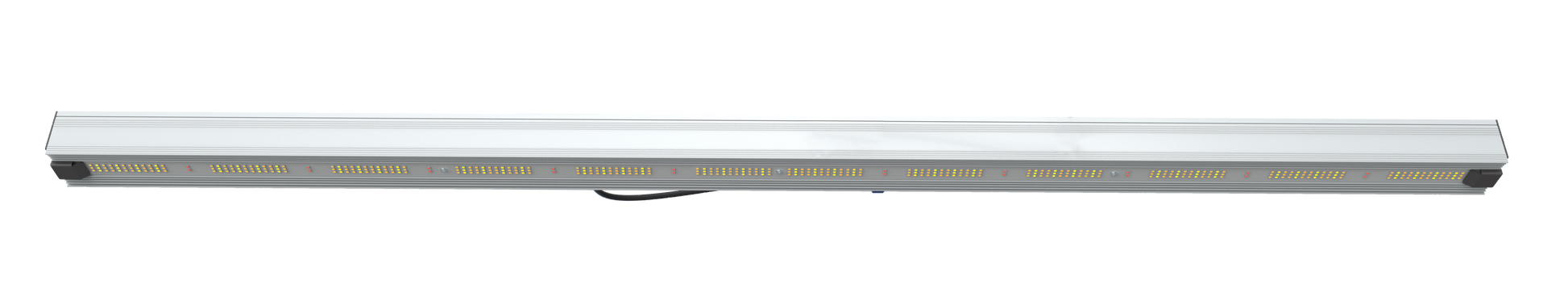

- Light bars:
- 6 bars / 8 bars
- Input voltage:
- AC 120V-277V
- Efficiency:
- 2.7 μmol/J
- Dimming:
- OFF/0-10V, 120W 210W 310W 420W 520W 660W
- Light output PPF(660W):
- 1946 μmol/s
- Light output PPF(880W):
- 2225 μmol/s
- IP rating:
- IP65
- Lifetime L90:
- ≥ 50,000hrs
- Product weight:
- 12.4KG/27.3LB
